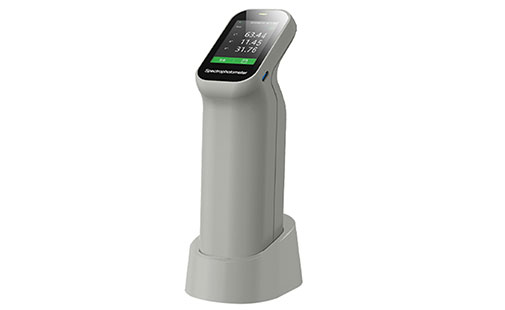

AMT555 Portable Colorimeter

Features:

1. Stable and reliable instrument for color difference detection

2. Dual optical path design improves repeatability accuracy up tp dE*ab≤0.03

3. Innovative 5 micron thick nano-integrated optics

4. Contains SCI measurement mode

5. Calibration base and zirconium reference with a Mohs hardness of 9 to calibrate the instrument, ensuring long-term stability

6. Support WeChat applet, Android, Apple, Hongmeng mobile APP

7. Use the powerful PC-based colour management system

Specifications:

1. Measuring structure: D/8, SCI

2. Measurement repeatability: ΔE*ab≤ 0.03

3. Display accuracy: 0.01

4. Measuring aperture: There are 2 stable and agile models in total: Φ11mm, ▽11mm

5. Color Spaces and Indices: CIE-Lab, Color differenceΔE*ab

6. Source condition: D65

7. Light source: LED

8. Measurement observation method: Visual

9. Calibration: Manual calibration

10. Software support: Andriod, iOS, Windows, Wechat app

11. Guaranteed accuracy: Guaranteed measurement

12. Observer: 10°

13. Integrating sphere diameter: 40mm

14. Standards: CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

15. Ways of spectral: Nano-integrated spectral devices

16. Sensor: Silicon photodiode array Dual 16-group

17. Wavelength interval: 10nm

18. Wavelength range: 400~700nm

19. Reflectance determination range: 0~200%

20. Reflectance resolution: 0.01%

21. Measurement method: Single measurement, average measurement (2 to 99 measurements)

22. Measurement time: Approx. 1 second

23. Interface: USB, Bluetooth

24. Screen: Screen Full colour screen, 2.4

25. Battery capacity: 8000 continuous measurements on a single charge, 3.7V/3000mAh

26. Life of light: 10 years and 1 million cycles

27. Storage: Instrument :10,000 data; APP: mass storage

Options parts:

1. Powder measuring cassette

2. Powder measuring cassette - clear glass slides

3. Ceramic panels

4. 800 quartz cylindrical cuvette (outer size φ32*41mm, wall thickness 1.5mm)
