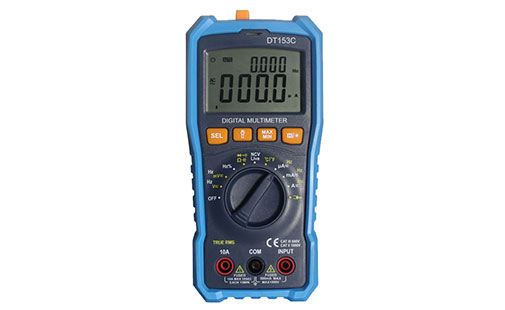

DT153C True RMS Digital Multimeter
Overview:
The new DT153C product redefines the performance standard for general-purpose digital multimeter. The innovative industrial design ensures the products have good impact resistance. The new LCD display layout provides a clear display for better user experience. The DT153C ensure safe operation in CAT III 600V or CAT II 1000V environment.
Specifications:
DC voltage:
| Range | Resolution | Accuracy |
| 600mV | 0.1mV | ±(0.8%of rdg+5D) |
| 6V | 1mV | ±(0.8%of rdg+3D) |
| 60V | 10mV | |
| 600V | 100mV | |
| 1000V | 1V | ±(1.0% of rdg+5D) |
AC voltage:
| Range | Resolution | Accuracy |
| 600mV | 0.1mV | ±(1.2%of rdg+8D) |
| 6V | 1mV | ±(1.2%of rdg+6D) |
| 60V | 10mV | |
| 600V | 100mV | |
| 750V | 1V | ±(1.2% of rdg+8D) |
DC current:
| Range | Resolution | Accuracy |
| 600μA | 0.1μA | ±(0.8% of rdg+5D) |
| 6000μA | 1μA | |
| 60mA | 10μA | |
| 600mA | 100μA | |
| 6A | 1mA | ±(1.5% of rdg+3D) |
| 10A | 10mA |
AC current:
| Range | Resolution | Accuracy |
| 600μA | 0.1μA | ±(1.5% of rdg+5D) |
| 6000μA | 1μA | |
| 60mA | 10μA | |
| 600mA | 100μA | |
| 6A | 1mA | ±(2.5% of rdg+3D) |
| 10A | 10mA |
Resistance:
| Range | Resolution | Accuracy |
| 600Ω | 0.1Ω | ±(1.2% of rdg+3D) |
| 6KΩ | 1Ω | |
| 60KΩ | 10Ω | |
| 600KΩ | 100Ω | |
| 6MΩ | 1KΩ | ±(1.5% of rdg+5D) |
| 60MΩ | 10KΩ |
Capacitance:
| Range | Resolution | Accuracy |
| 60n~60mF | 10p~10μF | ±(4% of rdg+5D) |
Temperature:
| Range | Resolution | Accuracy |
-40~1000°C | 1°C | -40~150°C: ±(1% + 4°C) |
| 150~1000°C: ±(2% + 4°C) | ||
-40~1832°F | 1°F | -40~302°F: ±(2% + 4°F) |
| 302~1832°F:±(2.5% + 4°F) |
Frequency:
| Range | Resolution | Accuracy |
10Hz~10MHz | 0.01Hz~10kHz | ±(1.5% of rdg+5D) |
Duty cycle:
| Range | Resolution | Accuracy |
10~95% | 0.1% | ±3.0% |
1. The maximum voltage between the input terminal and the ground: 600Vrms.
2. 10A terminal: Fuse 10A/600V Fast fuse Φ6x30mm.
3. mA/μA terminal: Fuse 0.5A/600V Fast fuse Φ6x30mm.
4. Max display 5999, over range display "OL", update rate: 2~3 times/second.
5. Backlight: Manual on, auto shut off after 15 seconds.
6. With electric torch function
7. Polarity: "-" symbol displaying on screen represents negative polarity signal.
8. Data hold function: "H"symbol displays on screen when data hold function is activated.
9. Low battery power: symbol displays on screen when battery power is low.
10. Battery: AAA 1.5V x 2pcs
11. Operating temperature: 0~40°C (32°F-104°F); Storage temperature: -10~50°C (14°F-122°F)
12. Relative humidity: 0~30°C: ≤75%RH
13. Operating altitude: 0~2000m
14. Dimension: 186x88.5x54mm
15. Weight: about 313g (battery included and holster)
