Product Description

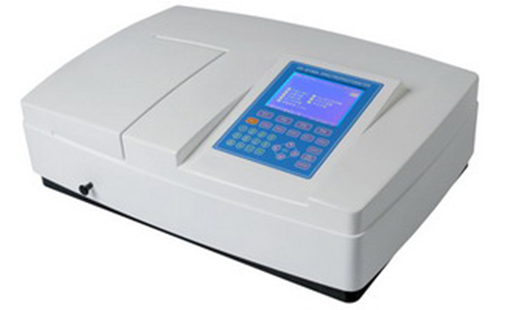

UV Spectrophotometer Large LCD Scanning AMV06, AMV07, AMV08

1. The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
2. The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/Vis spectrum starting from 190nm and into the near-infrared 1100nm.
3. Online software upgrade capability via Internet (for stand-alone models)
4. Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.
5. Real-time clock for date and time stamping of results
6. Large LCD display (320*240 Dots Matrix)
Model AMV06 AMV07 AMV08
Wavelength Range 190-1100nm
Bandwidth 1.8nm 1nm 0.5/1.0/2.0/4.0nm
Wavelength Accuracy +-0.3nm
Wavelength Repeatability 0.2nm
Photometric Accuracy +-0.3%T
Photometric Repeatability 0.2%T
Photometric Range -0.3-3A,0-200%T,0-9999C
Stability +-0.002A/h @ 500nm
Baseline Flatness +-0.001A/h
Noise +-0.001A/h
Stray Light 0.05%T max @ 220nm,360nm
Data Output Port USB
Printer Port Parallel Port
Display 320*240 Dots LCD
Lamps D2 Lamp & W Lamp
Detector Silicon Photodiode
Power Requirements AC 220V/50Hz or 110V/60Hz
Dimension 625*430*206mm
Weight 28kg
