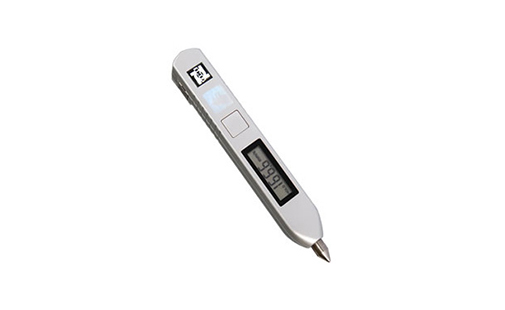

Vibration Meter  TIME7120/TIME7122/TIME7126

Product Introduction
TIME7120/TIME7122/TIME7126 vibration meter is equipped with acceleration integrated sensor, which makes it has the advantage of being small and light, portably to carry. It is mainly used for the quick check of motor, electric fan, pump, air compressor, machine tools and so on, it is also used for the preventive examination of malfunction of mechanical equipments.

Features
Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on
Compact size, small Weight, easy handling
Prompt testing of vibration on the workshop machines
For quick checking of unbalance misalignment, bearings and gears
Guard against mechanical malfunction
Holding tested value for 40 seconds
Automatic switch off after 40 seconds
TIME7120 is used specially for velocity testing
TIME7122 is used specially for displacement testing
TIME7126 is used for testing of acceleration, velocity and displacement
Model TIME7120 TIME7122 TIME7126
Parameters RMS of vibration, velocity (mm/s) Displacement Acceleration, Velocity, Displacement
Testing range Velocity: 0.1mm/s~199.9mm/s Displacement: 0.01~1.999mm (peak~peak) Acceleration:0.01m/S2-199.9m/S2 (peak)
Velocity: 0.01mm/s-199.9 mm/s (RMS)
Displacement: 0.001~1.999mm (peak-peak)
Frequency range Velocity:10Hz~1kHz Displacement: 10Hz~500Hz Acceleration: 10Hz ~ 1kHz; Velocity: 10Hz ~ 1kHz;
Displacement:10Hz ~ 500Hz
Tolerance ±5%
Display 31/2 digits LCD
Power supply two button batteries (LR44 or SR44)
Battery capacity Approx. 4.5 hours working continuously
Operating Temperature 0ºC~40ºC
Humidity <85%
Dimensions (mm) 150×22×18
Weight (g) 55 (including batteries)
