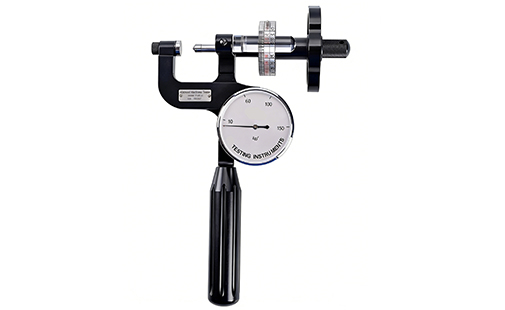

PHR-1 PHR-2 Analog Portable Rockwell Hardness Tester

Order Details:

1. PHR-1: Opening Size 25 x 25mm (1")

2. PHR-2: Opening Size 50 x 50mm (2")

Appications:

Portable Rockwell hardness tester for sale includes PHR-1 and PHR-2, which are with the same test principle and measurement accuracy as the laboratory bench type hardness tester, in line with ISO 6508 and ASTM E18. Portable Rockwell hardness testers are mainly used to measure small parts, such as standard hardware tools, cutter tools etc.

Features:

1. Small and Light weight: The minimum weight of the main rockwell tester for sale is only 0.8kg. The portable Rockwell hardness tester for sale allows for easy handheld use, and it can also be plugged into the base seat to use.

2. The Operation is Simple: This handheld hardness tester can be used like a micrometer. The simplicity of portable Rockwell hardness testers for sale ensures that anyone can achieve accurate results with minimal training.

3. Traceability: Our portable Rockwell hardness testers for sale features traceable test forces and comes with standard hardness blocks, ensuring reliable measurements every time.

Specifications:

1. Rockwell Initial Test Force: 10kgf

2. Rockwell Total Test Force: 60kgf, 100kgf, 150kgf

3. Rockwell indenter: 120° Diamond Indenter, 1/16" Carbide Ball Indenter

4. Indicator Error: Comply with ISO 6508, ASTM E18, ASTM E110 standards

5. Repeatability Error: Comply with ISO 6508, ASTM E18, ASTM E110 standards

6. Test Resolution: Rockwell: 0.5HR

7. Test Range: Rockwell: 20~70HRC, 20~100HRB, 20~88HRA…etc.15 scales

Standard Packing:

1. Tester

2. Bench Stand

3. 120° Diamond Indenter

4. 1/16" Carbide Ball Indenter

5. 3 pcs Rockwell Hardness Block

6. Flat Anvil

7. V Anvil

8. Extension bar

Optional Parts:

1. 1/8"  Carbide Ball Indenter

2. 1/4", 1/2"  Steel Ball Indenter

3. Raised spot anvil

4. Slim raised spot anvil (for small surface)

5. Concave cylinderical anvil

6. Convex cylinerical anvil (for tubings and curved surface)

7. Anvil for testing ball (for steel ball)

8. Spare magnifier
