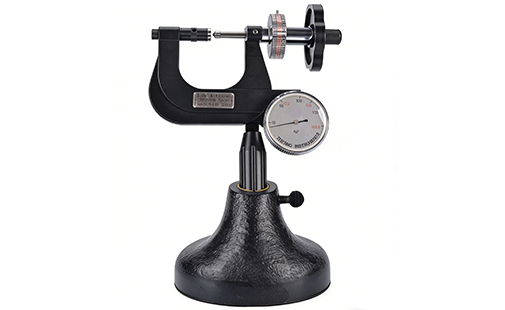

PHBR-2 Portable Brinell & Rockwell Hardness Tester

The portable Brinell and Rockwell hardness testers apply Brinell hardness testing principle and Rockwell hardness testing principle. Users could make accurate Brinell hardness tests with conventional indentation methods, and do Rockwell hardness tests based on Rockwell hardness testing methods according to different materials. Users have more choices for test forces and indenters.

The test ranges of handheld Brinell and Rockwell hardness testers are broader, with accuracy and error levels that comply with ISO and ASTM standards. These Brinell and Rockwell hardness tester parts are typically used on-site to assess the hardness of thin, small, long, and irregular parts, as well as standard components, hardware, and cutters. The portable Brinell and Rockwell hardness testers offer excellent mobility, and you can easily check the portable Brinell and Rockwell hardness tester price for your needs.

Features:

1. Light and Small: The portable Rockwell and Brinell hardness tester is lightweight and easy to carry, making it ideal for on-the-go testing.

2. Wide Application: Different modes and anvils are available for testing parts of various sizes and shapes, ensuring versatility for handheld Brinell and Rockwell hardness testers.

3. Test Blocks: Traceable standard hardness blocks are provided for accurate measurements with the portable Brinell and Rockwell hardness tester.

4. Indenter: The indenter is inspected with a standard Rockwell hardness tester for sale, guaranteeing reliable performance in our Brinell and Rockwell hardness tester parts.

Specifications:

1. Rockwell Initial Test Force: 10kgf

2. Rockwell Total Test Force: 60kgf, 100kgf, 150kgf

3. Brinell Test Force: 62.5kgf, 125kgf, 187.5kgf

4. Rockwell indenter: 120° Diamond Indenter, 1/16" Carbide Ball Indenter

5. Brinell Test Ball: 2.5mm Carbide Ball Indenter, 5mm Carbide Ball Indenter

6. Indicator Error: comply with ISO and ASTM standards

7. Repeatability Error: comply with ISO and ASTM standards

8. Test Resolution: Rockwell: 0.5HR; Brinell: 0.005mm (indentation diameter)

9. Test Range: Rockwell: 20~70HRC, 20~100HRB, 20~88HRA; Brinell: 16~650HBW

Standard Packing:

1. Tester

2. Bench Stand

3. 120° Diamond Indenter

4. 1/16" Carbide Ball Indenter

5. 2.5mm Carbide Ball Indenter

6. 5mm Carbide Ball Indenter

7. Rockwell Hardness Block

9. Brinell Hardness Block

10. 1/2" Flat Anvil

11. 1" V Anvil

12. 40x Reading Microscope

13. Magnifier

14. Extension Adapter

Optional Parts:

Special Anvils (customized by required size)
