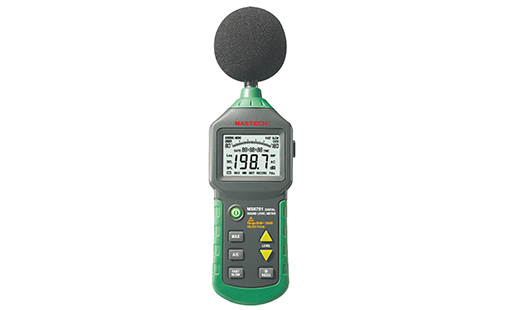

MS6701 Digital Sound Level Meter

The MS6701 is a versatile digital sound level meter designed for accurately measuring environmental noise levels. This device is ideal for use in various settings, such as workplaces, public spaces, and residential areas, where monitoring sound levels is crucial for maintaining a safe and comfortable environment.

Benefits:

1. Versatility: Suitable for various applications, including environmental noise monitoring in workplaces, public spaces, and residential areas.

2. Ease of Use: User-friendly interface with clear display and multiple functions for comprehensive sound analysis.

3. Portability: Compact and lightweight design, easy to carry and operate in different locations.

4. Safety and Compliance: Meets CE, ETL, and RoHS standards, ensuring safe and reliable operation.

Features:

1. Sound Measurement: Capable of measuring sound pressure levels across multiple ranges.

2. Auto and Manual Ranging: Supports both automatic and manual ranging for flexible measurement settings.

3. Max Display: 2000 counts for readings.

4. A/C Weighting: Adjusts sound measurements to reflect human hearing sensitivity, emphasizing or de-emphasizing frequencies.

5. Data Logging: Stores up to 16000 groups of measurements.

6. Max: Maximum values can be held on the screen.

7. Backlight: Features a backlit display for clear readability in dimly lit environments.

8. Analog Bar: Provides a visual representation of sound levels in real time, similar to an analog needle.

9. AC/DC Signal Output: Offers signal output for further analysis and integration with other equipment.

10. RS-232 PC Link and USB Interface: For easy data transfer.

11. Additional Features: Includes over range indication, date and time display, auto power off, and low battery display.

Specifications:

1. Sound Pressure Levels: 30dB to 130dB

2. Frequency Range: 31.5Hz to 8kHz

3. Sampling Rate: 2 times per second

4. Frequency Weighting: A/C

5. Time Weighting: Fast 125ms / Slow 1sec

6. Display counts: 2000

7. Auto Ranging

8. Auto Power Off

9. Backlight

10. Working Temp: 0~40°C

11. Data Hold

12. Data Logging: 16000 groups

13. Overrange Indication

14. Low Battery Indicator

15. Interface: USB
