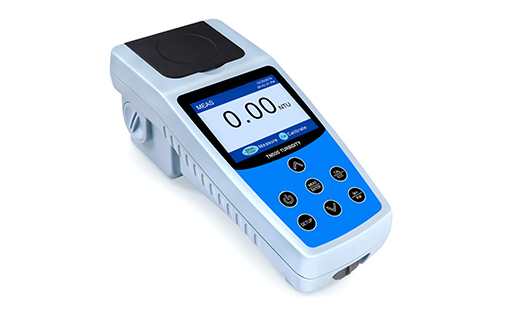

TN500 Portable White Light Turbidity Meter with GLP Data Logger, EPA 180.1 Compliant

Features:

1. EPA 180.1 Compliant for Reliable Water Analysis: Uses a tungsten filament lamp and 90° scattering method, fully compliant with U.S. EPA 180.1 for accurate turbidity measurement in tap water, drinking water, wastewater, and environmental applications.

2. Optimized for Low-Range Accuracy (<10 NTU): The premium-quality tungsten lamp ensures superior sensitivity in low-turbidity samples; the lamp is user-replaceable for long-term reliability and cost efficiency.

3. Multi-Reading Mode: Automatically captures multiple consecutive measurements, then calculates and displays average, minimum, and maximum values with a brief report — providing the true turbidity of your sample, not just one random reading.

4. Safe, Stable EPA-Approved Calibration Standards: Includes AMCO high-molecular polymer standards (0, 20, 100, 400, 800 NTU) — EPA-approved, NIST-traceable, non-toxic, and guaranteed stable for one year without settling or precipitation.

5. Zero-Point Calibration with Error Reminder: Built-in zero turbidity calibration and error alert functions ensure consistent accuracy, especially critical for low-turbidity measurements.

6. Intuitive Multi-Language Color Display: Large TFT color screen with on-screen operation guides supports English, Spanish, and Chinese, making setup and testing effortless.

7. Extended Battery Life with USB Power: Rechargeable 3.7V lithium battery provides up to 20 hours of continuous testing, over 5× longer lifespan than standard meters. Recharge easily via USB charger or PC.

8. GLP Data Storage & Connectivity: Stores 200 sets of readings with real-time clock, calibration history, and USB data export to PC via the included PC-Link software for GLP data management.

9. Built for Field and Lab Environments: IP67 water-resistant housing, rugged construction, and smart auto power-off design make the TN500 perfect for demanding fieldwork and laboratory use.

Specifications:

1. Measurement Method: 90° scattering measurement, U.S EPA180.1 compliant

2. Light Source: Tungsten filament lamp

3. Measuring Range:

    1) 0 to 1000 NTU (FNU), automatic range switch

    2) 0.01 to 19.99 NTU (FNU)

    3) 20.0 to 99.9 NTU (FNU)

    4) 100 to 1000 NTU (FNU)

4. Accuracy: ≤ ±2% of reading+ stray light

5. Repeatability: ≤ ± 1% of reading or 0.02 NTU (FNU) (the greater of the two)

6. Resolution: 0.01/0.1/1 NTU (FNU)

7. Stray Light: ≤0.02 NTU (FNU)

8. Calibration Standard: AMCO Polymer or Formazin Solution: 0, 20, 100, 400 and 800NTU (FNU)

9. Detector: Silicon photovoltaic

10. Measuring Mode: Normal measurement and TruRead measurement

11. Data Storage: 200 groups

12. Data Output: USB to PC

13. Calibration Record: Calibration date and time

14. Display: TFT color screen

15. Sample Vial: Φ25×60mm, high borosilicate glass with lid

16. Sample Vial Volume: 18ml

17. Power supply: 3.7V Rechargeable lithium battery

18. Working Condition: Temperature: 0 to 50°C (32°F to 122°F); Relative humidity: 0 to 90% at 30°C, 0 to 80% at 40°C, 0 to 70% at 50°C, no condensation

19. Instrument sealing grade: IP67

20. Dimension and Weight: Meter: 90×203×80mm/385g

21. Test Kit: 310×295×110mm/1.5kg
