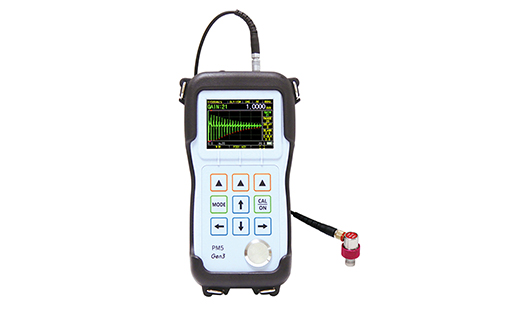

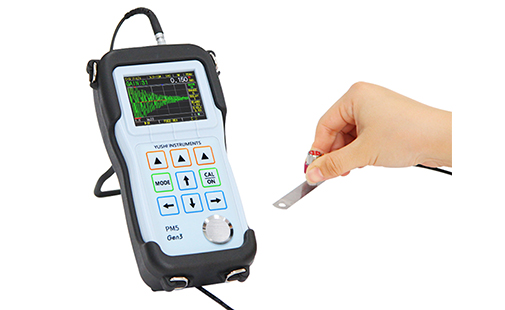

PM5 Gen3 High-Precision and Multi-Function Ultrasonic Thickness Gauge

Features:

1. Real-time A-scan with complete waveform ad」ustment functions, capable of locking onto any echo

2. 0.001mm resolution (can truly distinguish test blocks with a difference of 0.001mm), and the displayed value has high stability and repeatability

3. Measuring Range in Steel: 0.1mm ~ 480mm

4. Probe Types: single element probes, including delay line probes, contact probes, protective membrane probes, pen type probes, water immersion probes

5. Automatically matches the excitation pulse, damping, and sampling frequency according to the selected probe

6. The factory pre-sets the default configuration of various probes, and can also store 400 sets of user-defined configurations, one-click loading to simplify operation

7. 200MHz digital frequency ensures accurate measurement with distortion-free waveforms

8. Extremely low power consumption of less than 0.3w, two AA alkaline batteries can work continuously for 22 hours

9. The sensitivity is 12dB

10. Measurement Mode: P-E (Pulse-Ech o), E-E ( Ec ho-Echo), I-E (Interface Echo-Echo), MEV (Multiple Echo Verification)

11. Measuring Point : wave flank, wave peak, pre-zero crossing post-zero crossing

12. 60dB analog gain + 6.Sx digital gain.Digital gain amplifies the signal and allows for a maximum amplitude range of 650% to prevent signal saturation

13. Linear Time-dependent Gain (TOG), the slope starting point can be adjusted automatically or manually. TOG can reduce the blind area of the excitation pulse or interface echo , and optimize the near­surface resolution and minimum thickness measurement.

14. Automatic Gain Control (AGC), include TOG and normal automatic gain modes

15. Guided Calibration,waveform display during the process, with adjustable waveform

16. Material Velocity Table, including 52 common material sound velocities

17. Pause Function, calibration can be performed on frozen waveforms, changing measurement modes, and ad」usting various parameters such as gain, range, delay, gate, blank

18. One-click Range Zoom, quickly find/enlarge waveforms

19. Units: mm, in, um,mil

20. Rectification Wave: RF, RF-, HALF+, HALF-, FULL

21. Upper /Lower Limit Alarm Mode, supports thickness, sound velocity and time of flight

22. With minimum/maximum value mode, difference/reduction rate mode

23. Echo Strength Indicator, the echo height of the measurement point can also be displayed on the large digital view

24. Time-base B-scan, converting thickness values into cross-sectional images in real time to observe the internal corrosion profile of the workpiece

25. Full Screen Display Function, one-click switching, increasing waveform display area by 20%

26. A-scan+ storage grid view, developed specifically for easy data recording

27. It can store 100,000 measurement values and 400 sets of parameter configurations

28. Standard with Windows-based DataView interface software

29. Designed to meet IP67 dust and water resistance (1m underwater for 30minutes)

30. Rubber sheath with holder

Application Functions:

1. All PMS Gen3 thickness gauge models are equipped with the following measurement interface, combining professional and detailed design with intuitive and easy operation. Even non-professionals can quickly master it to obtain stable, reliable, and high precision measurement data-perfectly meeting the challenges of various industrial inspection scenarios.

2. Data Logger and PC Interface Software

3. The PMS Gen3 series ultrasonic thickness gauges are designed with the core mission of solving customers' thickness measurement challenges. A wide range of functional options have been developed to meet the diverse needs of different industries, allowing users to flexibly configure the instrument according to their specific application scenarios.

4. High-Speed Measurement & Simultaneous Directional Display

5. Noise Reduction and Damping

6. Ultrasonic Velocity Meter and Time of Flight

7. Window Mode

8. Adjustable Sampling Frequency

9. Double-Layer Measurement Software

10. Internal Oxide Scale Measurement Software

11. Large Measurement Range Mode: It is a composited measurement mode based on pulse-echo method. The display range can up to 38m. The key feature is achieving large range measurement while maintaining high accuracy.

12. AUTO Freeze Function

13. Bluetooth

14. Temperature Compensation

15. Directional Capture

16. Multilayer Software

17. Dual-element Probe Option

18. System Integration & Remote Control

19. Four-Channel Option

Specifications:

1. Measurement Modes: Pulse-Echo, Interface-Echo, Echo-Echo, Multiple Echo Verification, Automatic

2. Probe Types: Single element probe (Delay line probe, contact probe, protective membrane probe, pen type probe, water immersion probe)

3. Probe Frequency Range: 0.5MHz ~ 20MHz, 1MHz ~ 75MHz (High frequency option)

4. Measurement Range in Steel: 0.05mm ~ 62m, depending on probe, surface conditions, temperature, selected configuration. (To measure the thickness within the entire measurement range, the high frequency and window options should be selected.)

5. Sound Velocity Range: 310m/s ~ 18,699m/s, measures sound velocity based on known thickness object

6. Resolution: 0.1mm/0.01in; 0.01mm/0.001in; 0.001mm/0.0001in/1um/0.1mil; 0.0001mm/0.00001in/0.1um/0.01mil (High Resolution Option)

7. Measurement Units: mm, inch, um, mil, m/s, in/us, ns, us (Sound velocity meter and time of flight option)

8. Display Update Rate: Selectable at 4Hz, 8Hz or 16Hz

9. Data Logger Stores: 100,000 thickness values and 400 parameter configuration files, comes with PC software and USB drive

10. Digital Frequency: 200MHz

11. Display Screen: 2.4-inch (320x240 dot matrix) IPS wide-angle color display

12. Rectification Modes: RF, RF-, FULL, HALF+, HALF

13. View Modes: A-scan, B-scan, A scan/Grid, Large Digits

14. Probe Connector: Lemo 00

15. I/O Connector: Lemo 00 4-pin

16. Communication Interface: Mini USB (Optional RS232)

17. Operation Temperature: -10°C to 50°C

18. Housing: Impact-resistant, waterproof, sealing gasket housing designed to meet IP67 standards.

19. Dimensions: 153 x 76 x 37mm (HXWXD)

20. Weight: 280g including batteries

21. Power: Two AA batteries; USB port power supply (real-time communication option)

22. Battery Operating Time: Two AA alkaline batteries 22 hours

23. Power Off: Automatic shutdown after 5, 10, or 20 minutes of inactivity, or manual shut down

Standard Packing:

1. PM5 Gen3 UltrasonicThickness Gauge Main Unit

2. D15A Single Element Delay Line Probe

3. LEMO00-Microdot Probe Cable

4. Rubber Protective Sheath with Holder

5. Couplant (Not included in air shipment)

6. Communication Cable

7. Communication USB Flash Drive

Function Options

1. High Frequency and High Resolution Option

2. High Speed Measurement and Simultaneous

3. Directional Display Option

4. Digital Noise Reduction Option

5. Sound Velocity Meter and Time of Flight Option

6. WindowMode Option

7. Double Layer Measurement Option

8. Internal Oxide Scale Measurement Option

9. Temperature Compensation Option

10. Auto Freeze Option

11. Large Measurement Range Option

12. Directional Capture Option

13. Multilayer Measurement Option

14. Bluetooth Option

15. System Integration and Remote Control Option

16. Four Channel Option

17. Dual Element Probe Option
