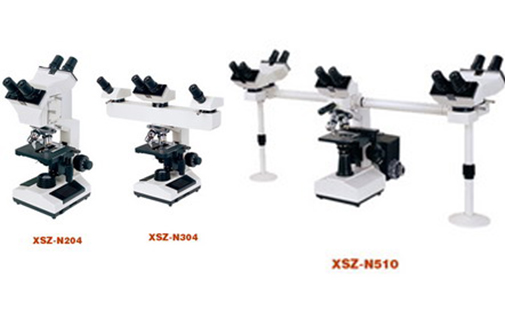

XSZ-N204 Series Multi-viewing Microscope
The microscope is equipped with five heads for five persons observing at the same time.
| Specification: | XSZ-N204 | XSZ-N304 | XSZ-510 | |
| Viewing Head | Sliding Binocular Head, lnclined at 45° | 2Pcs | 1Pc | 5Pcs |
| Monocular Head, lnclined at 45° | 2Pcs | |||
| Eyepiece | Wide Field Eyepiece WF10X | 4Pcs | 4Pcs | 10Pcs |
| Nosepiece | Quadruple Nosepiece | ● | ● | ● |
| Objective | Achromatic Objective 4×, 10X, 40X,100X | ● | ● | ● |
| Condenser | Abbe Condenser NA1.25 | ● | ● | ● |
| Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.002mm | ● | ● | ● |
| Stage | Double Layers Mechanical Stage 140 x 140mm/ 75 x 50mm | ● | ● | |
| Plain Stage 140×140mm/ 75 x 50mm | ● | |||
| lllumination | Halogen Lamp 6V/ 20W | ● | ● | |
| Halogen Lamp 24V/ 100W | ● | |||
| Pointer | Green LED Pointer , Brightness Adjustable | ● | ||
