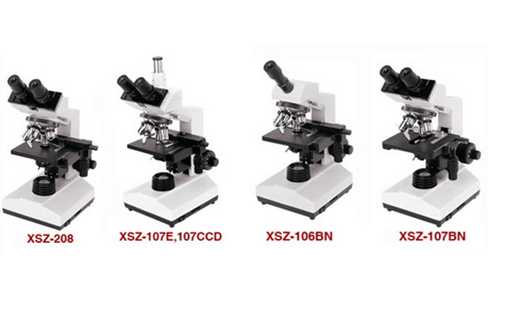

XSZ-107BN Series Biological Microscope
| Specification: | 106BN | 107BN | 207 | 107E | 107CCD | |
| Viewing Head | Monocular Head Inclined at 45°, 360° Rotatable | ● | ||||
| Sliding Binocular Head Inclined at 45°, 360° Rotatable | ● | |||||
| Compensation Free Binocular Head Inclined at 30°, 360° Rotatable | ● | |||||
| Sliding Trinocular Head for Photography | ● | |||||
| Sliding Trinocular Head for Video Camera (C Mount) | ● | |||||
| Eyepiece | Wide Field Eyepiece WF10X/ 18 | ● | ● | ● | ● | ● |
| Wide Field Eyepiece WF16X/ 11 | ● | ● | ● | ● | ● | |
| Objective | Achromatic Objective 4X, 10X, 40X, 100X | ● | ● | ● | ● | ● |
| Achromatic Objective 20X, 60X | ○ | ○ | ○ | ○ | ○ | |
| Plan Achromatic Objective 4X, 10X, 20X, 40X, 60X,100X | ○ | ○ | ○ | ○ | ○ | |
| Nosepiece | Quadruple Nosepiece | ● | ● | ● | ● | ● |
| Stage | Double Layer Mechanical Stage 140 x 140mm/ 75 x 50mm | ● | ||||
| Single Layer Mechanical Stage140 x 140mm/ 75 x 50mm | ● | ● | ● | ● | ||
| Condenser | Abbe NA1.25 with Iris Diaphragm & Filter | ● | ● | ● | ● | ● |
| Illumination | Built-in Illumination, Halogen Lamp 6V/ 20W | ● | ● | ● | ● | |
| Plan-concave Mirror | ● | ● | ● | ● | ● | |
| Kohler illumination | ○ | ○ | ○ | ○ | ||
| Photo Attachment | ○ | |||||
| Video Adapter | C Mount 1X | ○ | ● | |||
| C Mount 0.5X | ○ | ○ | ||||
| Filter | Blue Filter | ● | ● | ● | ● | ● |
| Green Filter | ● | ● | ● | ● | ● | |
| Polarization Set | Simple Polarization Set | ○ | ○ | ○ | ○ | ○ |
| Phase Contrast Kit | Simple phase contrast kit | ○ | ○ | ○ | ○ | ○ |
| Sliding phase contrast kit | ○ | ○ | ○ | ○ | ○ | |
| Turret phase contrast kit | ○ | ○ | ○ | ○ | ○ | |
| Dark Field Attachment | Dark Field Attachment (Dry) NA0.9 | ○ | ○ | ○ | ○ | ○ |
| Dark Field Attachment (Oil) NA1.25-1.36 | ○ | ○ | ○ | ○ | ○ | |
