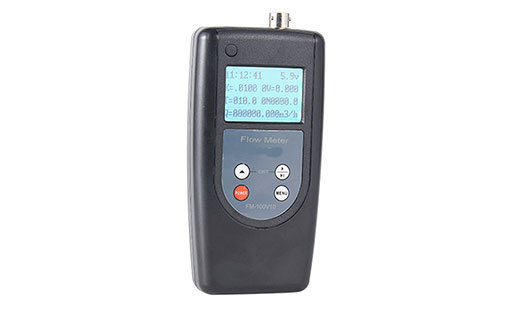

FM-100V10 Portable Flow Meter

Applications:

FM-100V10 portable flow rate meter (hereinafterreferred to as portable flow meter) is designed for hydrological stations, factories and mines, environmental protection monitoring station,farmland irrigation and drainage, hydrogeology survey and other departments in the field of velocity of flow in open channel flow.

Features:

1. Can be tested in sewage environment

2. Simple structure, light and convenient

3. Power consumption, complete functions

4. High degree of automation, stable and reliable

5. In line with the national high temperature rotary slurry is a new type of portable velocity measurement instrument

Specifications:

1. Formula:  V = KN/T + C (m/s) (automatic computer)

2. Instrument Number: k:0.0500 c:0.0100

3. Speed range: 0.01-10.00m/s

4. Current measurement error: ≤1. 5%

5. LCD: LIQUID crystal display

6. Measurement method: pole positioning measurement.

7. Temperature range: -10°C ~ 50°C

8. Power: 4 * AAA

9. Backlight: LED backlight

10. External power supply: 5V

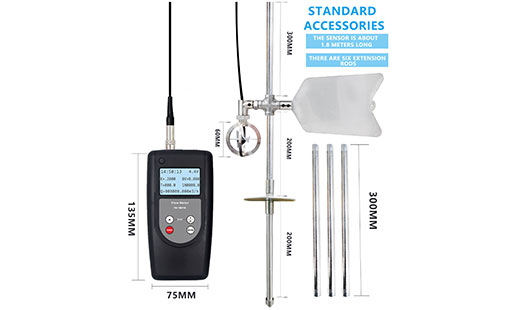

11. Host size: 75mm*135mm*25mm
