Product Description

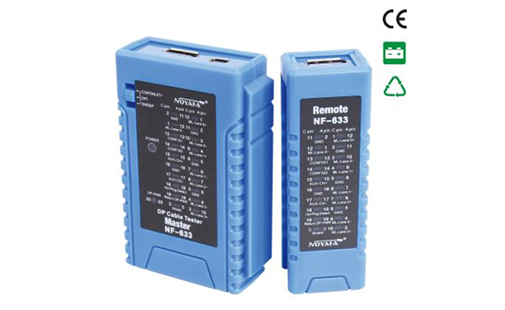

NF-633 Displayport Cable Tester

Specification:

1. Check disorder, short and open status of Cable, and distinguish exactly which cable is wrong.

2. Cable tested DisplayPort1.0, Display Port 1.1（VESA）

1) Display Port Cable

2) Mini Display Port Cable

3) Display Port to Mini Display Port Cable

3. Support Test

No.1 ~ No.19 pin-pin wire map and shield detection, and 20th detection.

4. two testing modes: Sweep and continuity

5. Testing result displays

19 LEDs and Shield Led on both Master and Remote Unit

20th LED only on Mater Unit

Specifications:

Cables versions support	Display Port Cable/ Mini Display Port Cable / Display Port to Mini Display Port Cable
Support test	19 pin to pin wiremap and shielding detection
Test interface of master unit	Displayport x1, Mini displayport x1
Test mode	Fast / slow scan / step by step
Test distance	Under 50 meters
Status Display	19 leds and shield led on both master and remote unit
Beeper indication	Yes
Low battery indication	6.0V
Power source	DC 9V (NEAD 1604/ 6F22) x1 (not included)
Environment	Operating:0 to 40 < 80% RH; Storage:-10 to 50<70%RH
Dimensions	Master unit:103x66x27mm; Remote unit:103x35x27mm
