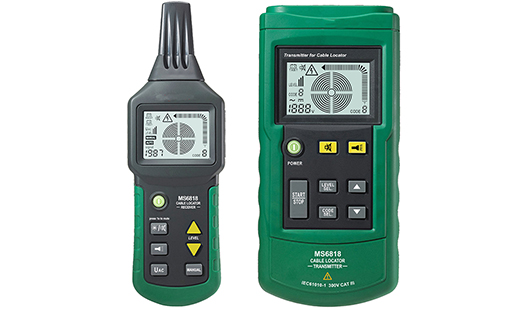

MS6818 Cable Tracker Cable Tracer Wire Trackers Cable Fault Locator Device

The MS6818 is a professional-grade cable tracker designed for identifying and tracking cables or wires within a group and diagnosing open or short circuits. With its robust construction and advanced features, the MS6818 ensures accurate and efficient troubleshooting for both professionals and DIY enthusiasts.

Benefits:

1. Versatility: Suitable for a wide range of cable types and environments, providing reliable cable tracking and fault diagnosis.

2. Ease of Use: User-friendly interface with adjustable sensitivity and data hold functions for convenience.

3. Safety: CE, ETL, and RoHS certifications ensure safe and compliant operation in various testing environments.

4. Portability: Compact design and lightweight build make it easy to carry and use in various field condition

Features:

1. Multifunctional Cable Tracking: Identify and trace cables and wires within a group, and diagnose faults such as open or short circuits.

2. Sensitivity Adjustable: Allows users to adjust sensitivity for accurate cable detection in different environments.

3. Backlight & Work light: Easy-to-read display in dim environments.

4. Safety Certified: CAT III 300V certifications ensure safe operation.

5. Additional Features: Includes a built-in speaker for audio feedback, LED indicators for visual confirmation, and auto power off.

Specifications:

Transmitter:

1. Output Signal: 125kHz

2. External Voltage: DC12~400V AC12~400V (50~60Hz) ±2.5%

3. Fuse: F0.5A 1000V

4. MIN Current: about 31mA

5. MAX Current: about 115mA

6. In Work: 0~40°C, with MAX relative humidity of 80%

7. In Storage: -20~60°C, with MAX relative humidity of 80%

8. Altitude: 2000m

Receiver:

1. Depth of Tracking: The Depth of Tracking Depends on the Material and Specific Applications

2. Cable: Single pole application: about 0~2m

3. Locating: Dual pole application: about 0~0.5m

4. Mode: Single loop line: Up to 2.5m

5. MIN Current: about 32mA

6. MAX Current: about 89mA

7. In Work: 0~40°C, with MAX relative humidity of 80%

8. In Storage: -20~60°C, with MAX relative humidity of 80%

9. Altitude: 2000m

Others:

1. Safety Rating: CAT III 300V

2. Auto Ranging: Yes

3. DC Voltage: 12~400V

4. AC Voltage: 12~400V

5. Frequency: 125kHz

6. Sensitivity adjustment

7. Electoric Wire

8. Backlight

9. Work Light

10. Sound & Light Instructions
