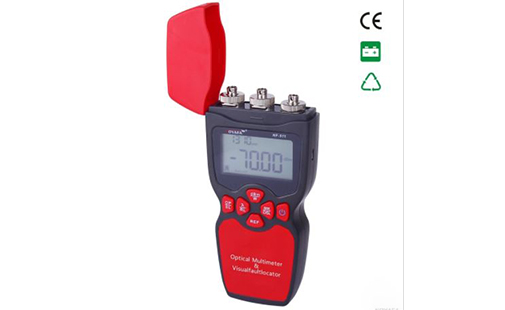

NF-911 3-in-1 optical multimeter

Inquire Now

Product Description

NF-911 3-in-1 optical multimeter

Functions:
1. Measurement of the power of optical sender (dBm and W).
2. Insertion loss test of optical devices.
3. Light source function
4. Check fiber breakage, winding,ect.
5. New REF user-defined.
6. FC/SC/ST general-purpose interface.
7.Wavelength:850/1300/1310/1490/1550/1625nm(powermeter)
8 .wavelength:1310 / 1550nm( light source)
9. wavelegnth: 650nm (VFL)

 Model  NF-911
 Power meter  Power detecting range(dBm)  -70 ~ +10   -50 ~ +26
 Wavelenth (nm)  800-1700
 Probe  InGaAs
 Detection limit  ∮1.0mm
 Standard wavelenth  850, 1300, 1310, 1490, 1550, 1625nm
 Display resolution   0.01dBm
 Light source  Modulation frequencies  CW/270Hz,1KHz,2KHz
 Standard wavelenth  1310, 1550nm
 Emitter type  FP-LD
 VFL  Emmiting Energy   5mw/ 10mw/ 20mw/ 30mw selectable
 Standard wavelenth  650±10nm
   Working temp  -20 ~ +70℃
   Power supply  1.5V*3pcs
   Overall dimension  160x75x32mm
