Product Description

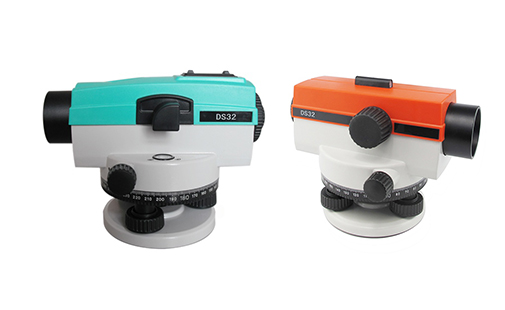

AUTO LEVEL DS32, DS28, DS24

FEATURES:

1. Air-damping compensation system (X-type suspension wire) offering a high and reliable accuracy.

2. Super clear imaging system for all weathers.

3. Advanced anti-vibration, water-proof and dust proof designs suitable for different surveying conditions.

Specifications:

Technical Parameters	DS24	DS28	DS32
Standard Deviation for 1km Double-run Leveling	2.0mm	1.5mm	1.0mm
Telescope Magnification	24x	28x	32x
Telescope Image	Erect
Effective Aperture Size of Object Lens	40mm
Field of View	1°20
Shortest Sighting Distance	0.65m
Stadia Multiplication	100
Addition Constants	0
Compensator Type	X wire-hung and air-damping
Compensator Working range	±15'
Leveling Accuracy	±0.5"	±0.4"	±0.3"
Accuracy of Circular Level	8/2'mm
Horizontal Circle	360° or 400Gon optional
Instrument Size	188 x 132 x 140mm
Net. Weight	1.4kg
Standard Accessories	Adjusting Pin, Hex key, Desiccating Agent. Plastic Carry Case, Plumb Bob, User Manual
Packing Details	4sets per Carton:11kgs per Carton, Carton Dimensions:42cmX31cmX42cm
