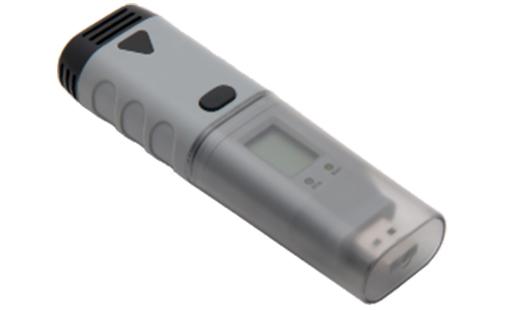

AMY01 AMY02 AMY03 AMY04 USB Temperature and Humidity Data logger
INTRODUCTION:
This data logger measures and stores up to 32,000 readings. It can plug data logger straight into PC's USB port without any cables. User can view, analyse and print the data, or export other file formats (txt, xsl, csv, bmp, jpg).
APPLICATIONS:
This data logger is used mainly to monitor and verify temperature-sensitive goods, equipment or areas. For example: Cold Chains; Refrigeration Transportations; HVAC Food & Pharmaceutical Warehouse.
FEATURES:
1. Portable, precise, compact and low cost
2. USB interface directly communicate with PC for setup and data download
3. Unique and uniform PC control software
4. Each unit has single serial number
5. User can set access password for each data logger
6. Alarm and status indication via LED
7. Replaceable lithium battery and data is not lost if exhausted
8. Two point calibration for each channel
Specifications: 1. Temp. Range: -35ºC to 80ºC (-31 to 176ºF)
2. Memory Capacity: 32,000 readings3. Sample Rate: 10s ~ 12 hours4. Power Supply: Replaceable 3.6V lithium battery, 1200mAh5. Size: 120 x 37 x 23mm (4.8"x 1.5"x 0.9")| Parameter | AMY01 | AMY02 | AMY03 | AMY04 |
| RH Range | N/A | 0~100% |
| Accuracy | Temp.:±0.5ºC (±0.9ºF) | Temp.:±0.5ºC (±0.9ºF); RH:±3% |
| Resolution | Temp: 0.1ºC (0.2ºF) | Temp: 0.1ºC (0.2ºF); RH: 0.1% |
| LED Display | N/A | YES | N/A | YES |
