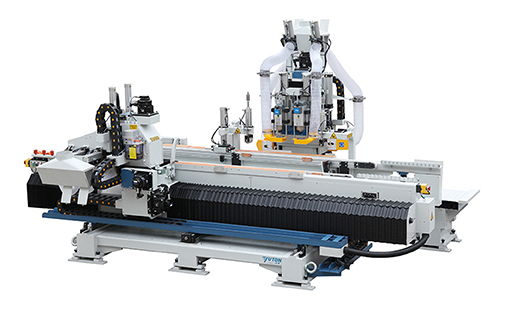

MDK4130Q5 CNC Door Lock Hole & Slot Solution Door Lock Hole Drilling Hinge Boring Driller Wooden Door Hole Slotting Mortiser Lock

Features & Specifications:

1. Used for processing the slots and holes for door accessories such as door locks and hinges

2. Barcode recognition

3. The working table width can be automatically adjusted and it can automatically load and unload materials (forward and reverse options available), meeting the needs of single machines and line operations, and saving auxiliary labor

4. Processing Materials: Length × Width × Thickness: 1800~3000 × 400~1100 × 30~60mm

5. Processing Cycle: 75 seconds per door (for lock slots with a length less than 120mm, regular lock types with less than 4 lock holes, and three-plank hinges, related to the processing shape)

6. Loading Direction: Longitudinal loading and unloading, synchronous belt conveying. Conveyor speed: 40m/min, variable frequency adjustable

7. Electrical Control: PLC control

8. Workpiece Positioning: Positioning and clamping during processing based on the forward direction of the door panel and the side of the lock; length direction and width direction are clamped by cylinders

9. Positioning and Clamping: Vertical direction has auxiliary clamping on the lock side and hinge side; each side has a follow-up clamping device

10. Main Shaft Motor: Right-hand rotating motor on the lock slot side, 6.0kw, 18000rpm

11. Left-hand rotating motor for lock slot/hinge side, 2x1.5kw, 12000rpm

12. Right-hand rotating motor for lock slot/hinge side for hole drilling (right-hand rotation), 2x0.4kw, 12000rpm

13. Right-hand rotating motor for lock hole/hinge, 2x3.7kw, 12000rpm

14. Right-hand rotating motor for lock hole, 1.5kw, 12000rpm

15. Air Consumption: Inlet diameter φ12mm, inlet pressure 0.6MPa, air consumption 100L/min

16. Lubrication: Grease lubrication, oil type: 46# lubricating oil, oil pump 1 unit

17. Vacuum Port: 3×φ150mm, vacuum port upward

18. Air Flow: Air velocity at the vacuum port 30m/s, total air volume 5800m3/h

19. Total Power: 31kw

20. Overall Dimensions: Length × Width × Height: 5350×3400×2350mm

21. Overall Weight: Approximately 6300kg
