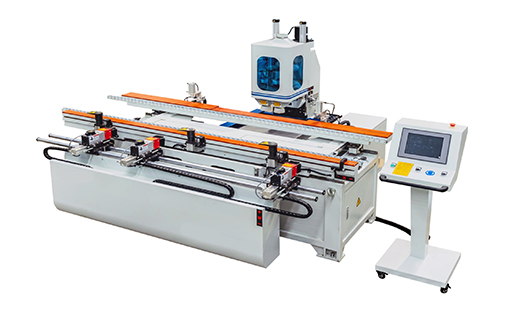

MDK4120D CNC lock hinge hole slot processing machine

Order Number:

1. MDK4120D-1: Three Single Hinges

    1) It can clamp one wooden door at a time and complete the processing of the hinges, lock grooves, lock steps, and lock holes.

    2) The maximum processing height of the door is 2400mm, the maximum thickness is 30~60mm, the maximum width is 600~1100mm. The maximum moving range of the worktable is 400mm, the maximum moving speed is 5m/min.

    3) The hinge motor is 0.4KW x 3, the lock groove motor is 3.7KW x 1, the lock step motor is 0.4KW x1, and the lock hole motor is 1.5KW x2

    4) The equipment's external dimensions are 2740 x 2270 x 1620mm

    5) Weight: 1900Kg

2. MDK4120D-2: Three Double Hinges

    1) It can process hinges, lock slots, lock steps and lock holes of wooden doors in one clamping.

    2) The maximum height of the processed door is 2400mm, the maximum thickness is 30~60mm, and the maximum width is 600~1100mm. The maximum movement range of the worktable is 400mm, and the maximum movement speed is 5m/min

    3) There are 6 hinge motors of 0.4KW, 1 lock slot motor of 3.7KW, 1 lock step motor of 0.4KW and 2 lock hole motors of 1.5KW

    4) Dimensions are 2740×2270×1620mm

    5) Weight: 19500Kg
