6DJ-30 6DJ-50 Industrial Holiday Detector

Features:

6DJ holiday detector is pulsed high voltage protecting coating quality detector. It can adjust its value of voltage according to the thickness of protecting coating. 6DJ use lithium battery for power source, it is also can be used in field.

Applications:

The equipment 6DJ can be widely used in chemical industry, oil, rubber and enamel.

Specifications:

1. Test voltage range:

   1) 6DJ-30: 0.6KV ~ 31.5KV

   2) 6DJ-50: 1.0KV~50.0KV

2. Thickness range:

   1) 6DJ-30: 0.05 ~ 10mm

   2) 6DJ-50: 0.1~35mm

3. High voltage output: Pulse

4. Voltage display: 3 digit

5. Display accuracy: 0.1KV

6. Voltage precision: ±0.1kv+3%

7. Max leak record: 999 maximum

8. Way of alarming: Headphone buzzer and light

9. Shutdown: Auto and Manual

10. Display: 128*64 LED screen with backlight

11. Power: ≤6W

12. Size: 240mm*165mm*85mm

13. Battery: 12V 4400mA

14. Working time: ≥12 hours (Max voltage)

15. Charging time: ≈4.5 hours

16. Voltage of adapter Input: AC 100~240V

17. Output: 12.6V 1A

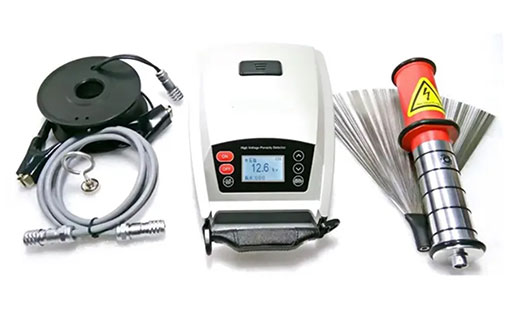

18. Probe wire: about 1.5m

19. Earth lead wire: 2*5m black/black

20. Fuse: 1A
