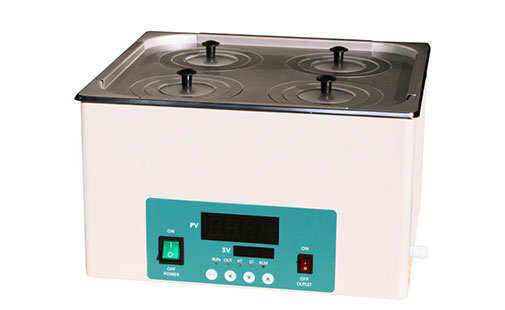

DK-2000-IIIL Thermostatic Water Baths
Features:
1. Stainless steel stretching inner container and roof cover.
2. Intelligent temperature controller with PID program, digital tube display and function of timing and over-temperature protection.
3. Add the electric drain switch, one-button operation ,convenient to drain, Note: single hole water baths have no drain function.
4. Power off when water shortage to ensure the safe operation of the product.
Specifications:
| Specifications | 1 hole | 1 row & 2 holes | 2 rows & 4 holes | 2 rows & 6 holes | |
| Model | DK-2000-IIIL | DK-2000-IIIL-A | DK-2000-IIIL | DK-2000-IIIL-B | DK-2000-IIIL-C |
| Heating Mode | Nature water convection heat transfer | ||||
| Function | Range | RT+5～100℃ | |||
| Resolution | 0.1℃ | ||||
| Motion | ±0.5℃ | ||||
| Uniformity | ±1.0℃ | ||||
| Structure | Inner Chamber | Stainless steel | |||
| Outer Shell | Cold rolled steel plate, resistance to chemical reagents, coating on the surface | ||||
| Heater | Stainless steel heating tube | ||||
| Power Rating | 0.4kW | 0.5kW | 1.0kW | 1.5kW | |
| Controller | Control Mode | PID | |||
| Setting Mode | Touch button setting | ||||
| Display Mode | Measuring temperature displays on the three digital tubes upper row, set temperature displays on the lower row | ||||
| Timer | 0～9999min（with timing wait function） | ||||
| Operation Function | Fixed temperature operation, timing function, auto stop. | ||||
| Program Mode | Optional | ||||
| Additional Function | Deviation Correction, menu key locked, power failure back-up, power off memory | ||||
| Sensor | CU50 | ||||
| Safety | Over temperature alarm | ||||
| Details | Inner size (W*L*H) | 150*135*150mm | 300*135*150mm | 325*300*150mm | 500*300*150mm |
| Exterior size (W*L*H) | 170*154*210mm | 318*168*210mm | 350*318*210mm | 524*322*210mm | |
| Packing size (W*L*H) | 240*230*280mm | 390*240*280mm | 420*390*280mm | 600*390*280mm | |
| Volume | 3.4L | 6.1L | 14.6L | 22.5L | |
| Load per rack | 5kg | ||||
| Shelf Number | 1 | ||||
| Power Supply | AC220V/1.8A | AC220V/2.3A | AC220V/4.5A | AC220V/6.8A | |
| NW/GW (kg） | 3.3/4 | 4.5/5 | 6/7kg | 7.5/9 | |
