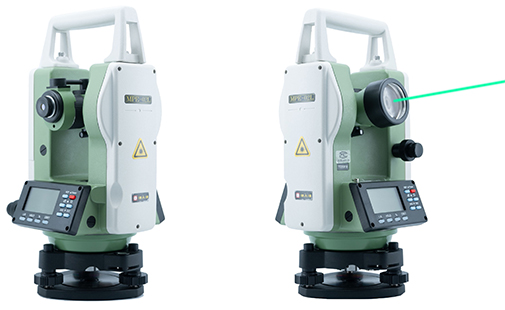

MPE02-L Digital Electronic Theodolite

The MPE-02L Digital Electronic Theodolite sets a new standard for outdoor alignment with its Coaxial Green Laser Pointer, which offers significantly better visibility in bright sunlight compared to standard red lasers. It ensures precise results with 2" angular accuracy and flexible display increments (1"/5"/10"). Featuring a user-friendly 10-button keypad and dual backlit LCD displays, the device is easy to operate in any lighting. With a robust, compact design and 8 hours of battery life, the MPE-02L is engineered for high-efficiency fieldwork.

Features:

1. High Visibility Green Laser: Equipped with a coaxial green laser pointer that is significantly easier to see in bright sunlight and over long distances than red lasers.

2. High Precision Measurement: Delivers professional 2" angular accuracy with selectable display increments (1", 5", 10") for versatile application.

3. User-Friendly Operation: Features a simple 10-button keypad layout and dual backlit LCD displays for clear data reading in any lighting condition.

4. Efficient Power & Design: Provides up to 8 hours of continuous operation on a single charge and features a lightweight, compact design for easy transport.

Specifications:

Angle Measurement:

1. Accuracy: 2" (0.6mgon)

2. Reading System: Absolute Encoder

3. Units: DEG / MIL / GON / V%

4. Minimum Increment: 1.0" (0.3mgon)

5. Circle Diameter: 74mm (2.9in)

6. Horizontal/Vertical Detection: Diametrical / Single

Telescope:

1. Tube Length: 120.4mm (4.7in)

2. Image: Erect

3. Magnification: 30x

4. Field of View: 1° 30'

5. Resolving Power: 15set

6. Effective Aperture: 47mm (1.85 in)

7. Minimum Focusing Distance: 1.5m (4.9ft)

8. Laser Pointer: Coaxial Green Light

9. Reticle Type: Crosshair

10. Stadia Ratio / Constant: 100 / 0

Tilt Sensor:

1. Type: Single-Axis

2. Method: Liquid-Electric Detection

3. Compensation Range: ±3'

General:

1. Display: Dual Backlit LCD

2. Keys: 10 Keys Total

3. Tribrach Circular Vial: 10' / 2mm

4. Tubular Vial: 30" / 2mm

5. Circular Vial: 8' / 2mm

6. Tangent Clamps: Yes

7. Internal Plummet: Class 2 Laser (1.5mm @ 1.5m)

8. Dimensions: 180 x 166 x 355mm (7.0 x 6.5 x 13.9in)

9. Weight (Main Unit): 4.1kg (9.0lb)
