| Parameter |

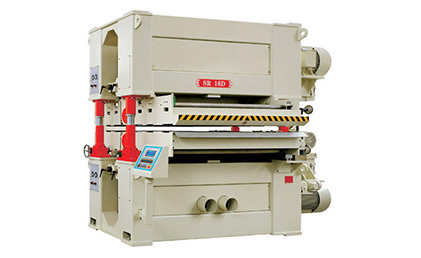

SR 16D |
|||
| Working Width | 120~~1630mm | |||
| Working Length | >700mm | |||
| Working Thickness | 3~~120mm | |||
| Sanding Belt | Front | 26 m/s | ||
| Rear | ||||
| Size of Sanding Belt (W × P) | 1670 × 2850mm | |||
| Feeding Speed | 6~~30m/min | |||
| Power | Main Motor | Front | 75kW × 2 | |
| Rear | ||||
| Feeding Motor | 11kW | |||
| Lifting Motor | 1.5kW | |||
| Brush Motor | 1.1kW × 2 | |||
| Compressed Air | Pressure | 0.6 MPa | ||
| Air Consumption | 0.5m 3 /min | |||
| Suction Air Consumption | Volume | 24000m 3 /h | ||
| Pressure | 1300Pa | |||
| Average Air Speed | 25~~30m/s | |||
| Net Weight | 17T | |||
| All rights for technical modifications reserved. CE approval | ||||
