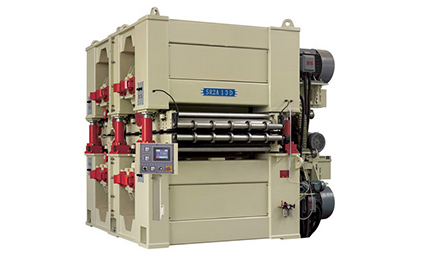

| Model No. | SR2A13D | |||
| Working Width | 200～1300 mm | |||
| Working Length | >900 mm | |||
| Working Thickness | 3～90 mm | |||
| Sanding Belt Speed | Front | 29 m/s | ||
| Rear | 27 m/s | |||
| Size of Sanding Belt (W×P) | 1350×2800mm; 1350×3000mm | |||
| Feeding Speed | 6～30 m/min | |||
| Power | Main Motor | Front | 75kW×2 | |
| Rear | 75kW×2 | |||
| Feeding Motor | 15 kW | |||
| Lifting Motor | 1.5 kW | |||
| Brush Motor | 1.1 kW×2 | |||
| Compressed Air | Pressure | 0.6 MPa | ||
| Air Consumption | 0.3 m3/min | |||
| Suction Air Consumption | Volume | 32000 m3/h | ||
| Pressure | 1300Pa | |||
| Average Air Speed | 25～30 m/s | |||
|
Overall Dimension (L×W×H)
|
3200×3900×2980mm | |||
| Net Weight | 30 T | |||
| All rights for technical modifications reserved. CE approval | ||||
