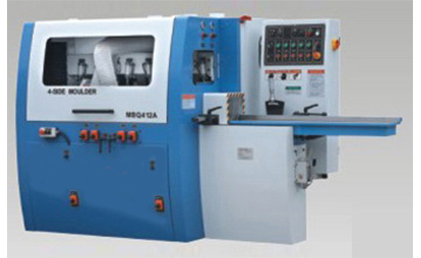

4 Side Moulder QMB412

Inquire Now

Product Description

Features:
QMB412 is a new small four spindle four-side moulder according to the requirement of the customer, it is main used for short material and woodwork, it is the economic and useful machine for solid wood furniture factory, finger joint wood manufacturing plant and woodwork industry.
1. One piece cast iron frame with aging treatment, providing sufficient stability.
2. Advantage: the min. working length is 180mm (continuation feeding).
3. Feeding system adopts cardan joint and belt speed variator for transmission, providing superior reliability and easy operation. Feeding speed can come to 6~24m/min.
4. The worktable surface adopts special material and is hard chromed, providing sufficient wear-resistance.
5. Pneumatic hold- down system, providing stable pressure and easy adjustments.
6. Pneumatic short piece feeding mechanism, fully guaranteeing the transport of short pieces. No piece gets stuck and no burns left on the piece.
Specifications:
Parameter QMB412
Max. working width 120mm
Min. working width 20mm
Max. working thickness 100mm
Min. working thickness 8mm
Min. working length continuation/interruption 180/450mm
Moveable workable working quantity profile/flat surface 6/6mm
Spindle speed 6800 r/min
Feed speed 6~24 m/min
Spindle diameter φ40mm
Cutter diameter -Bottom level cutter (Side cutter) φ125/φ152mm
Right vertical cutter φ115~φ140mm
Left vertical cutter φ115~φ140mm
Top level cutter φ105~φ140mm
Motor power (Total power) 15.95kW
Bottom level spindle 3kW
Right vertical spindle 3kW
Left vertical spindle 3kW
Top level spindle 4kW
Feed/elevation 2.2/0.75kW
Air source pressure 0.20~0.5MPa
Dust collection diameter φ120mm
Overall dimensions 2890*1460*1660mm
Weight 2200Kgs
