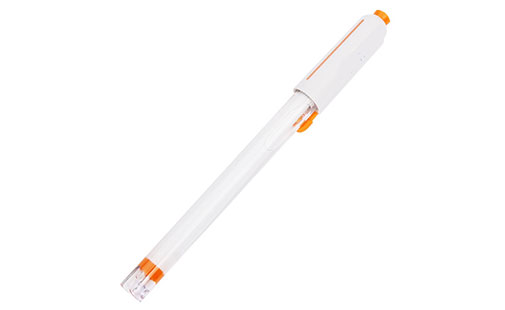

E-301-QC 3 in 1 pH Composite Electrode / pH Electrode / pH Combination Electrode

Features:

1. pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.

2. pH indicator electrode needs to cooperate with reference electrode.

3. Composite electrode combines the pH indicator electrode, reference electrode.

4. 3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.

5. Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.

6. Connector: S7 BNC (Q9)

Specifications:

1. pH Range: 0~14

2. Fill Solution: 3M KCl

3. Sensor material: Polycarbonate

4. Working Temp.: 5~60ºC

5. Junction material: Single fabric

6. Reference Type: Ag/AgCl

7. Dimension: Φ12×120 mm

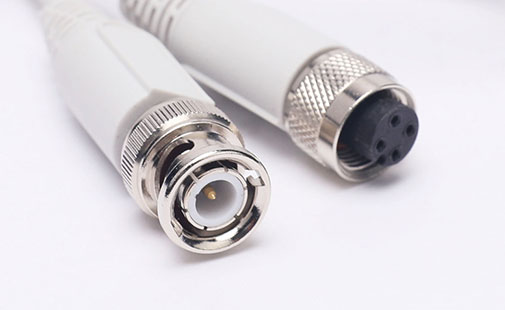

8. Connector Type: BNC(Q9) & 4 pins aviation
