Product Description

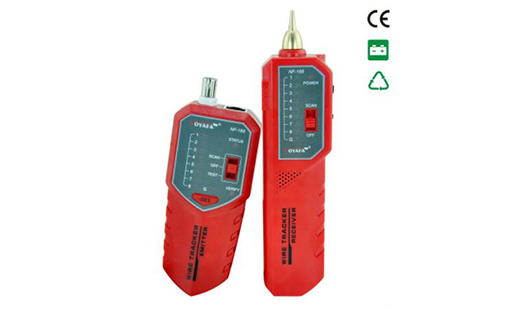

NF-168 Wire Tracker

Features:

1. Tracing RJ45 RJ11 BNC Cable directly when connected with switch or router.

2. Test 5E, 6E directly, troubleshooting open, short, cross errors.

3. RJ45/RJ11/BNC and other ports are included and the complex switch is not required.

4. Earphone and backlight help you operate in dark.

NF-168 Transmitter specifications
Tone frequency	130kHz
Max. distance of transmission	3000m
Max. working current	Less than 10mA
Tone mode	2 Tones, adjustable
Compatible connectors	RJ11, RJ45, BNC
Max. signal voltage	8Vp-p
Function and faults light display	Led 1~8 & G
Battery Type	DC9.0V（NEDA 1604/6F22 DC9V x 1pcs）
Dimension(LxWxD)	13x4x2cm
NF-168 Receiver specifications
Frequency	130kHz
The Max. working current	Less than 30mA
Earjack	1
Battery Type	DC9.0V（NEDA 1604/6F22 DC9V) x1pc
Dimension(LxWxD)	10 x 5 x 2.3cm

Description	NF-801	NF-806	NF-818	NF-168	NF-268
Trace RJ11 Cable	√	√	×	√	√
Trace RJ45 Cable	√	√	×	√	√
Trace BNC Cable	×	×	√	√	√
Check RJ11 cablemapping	×	×	×	×	×
Check RJ45 cablemapping	√	√	×	√	√
Check BNC cablemapping	×	×	√	√	√
Tone trace breakage points	×	×	×	×	√
Cable clip connected to transmitter directly	×	√	×	×	×
Anti-jamming when tracing on switcher	ok	ok	ok	good	best
Pin-to-pin display	√	√	√	√	√
Lamp	√	√	√	√	√
Note: NF-801B & NF-801R / NF-806B & NF-806R is just different colors ( B:blue, R:red)
